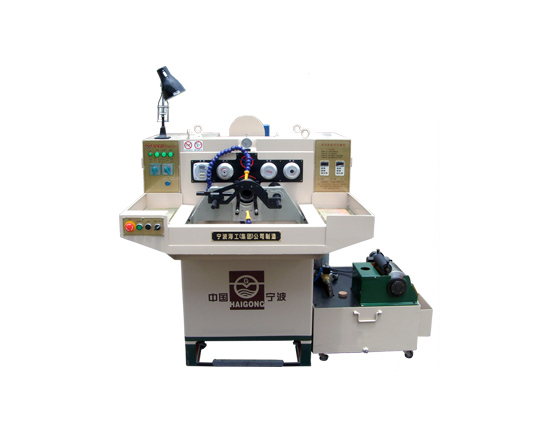

Model

            WHM-100A

            WHM-100B

machining range

 (maneuvering stroke)
 aperture:∮4-∮60
 most pore length:250mm

(maneuvering stroke)
 aperture:∮4-∮100
 most pore length:250mm

spindle speed

250-2500rpm Inverter speed control, brake

250-600rpm Inverter speed control, brake

spindle motor

1.5KW、Y90L-4 Inverter speed control, brake

1.5KW、Y90L-4 Inverter speed control, brake

stroke length

10~160mm stepless

10~160mm stepless

stroke speed

80~400rpm Inverter speed control, brake

80~400rpm Inverter speed control, brake

stroke motor

Slow down the mechanical and electrical machine
0.75KW 1400rpm

Inverter speed control, brake

Slow down the mechanical and electrical machine
0.75KW 1400rpm

Inverter speed control, brake

stop brake of spindle and stroke

spindle mechanical, stroke electronic brake

spindle mechanical, stroke electronic brake

oil pump motor

YSB-25 0.15KW 25 litres /min

YSB-25 0.15KW 25 litres /min

exterior size

1700*1100*1400mm

1700*1100*1400mm

machine net weight

600kg

600kg

power

380v 50hz 3x

380v 50hz 3x
